2 Port 1000 Watt Splitter/Combiner

---

 2-PORT 1000 WATT SPLITTER/COMBINER

50 ohm impedance on all ports

1000 Watt SSB power handling capacity

30 dB minimum isolation between splitter output ports

30 dB minimum isolation between combiner input ports

VSWR is less than 2:1 for 2 to 30 MHz.

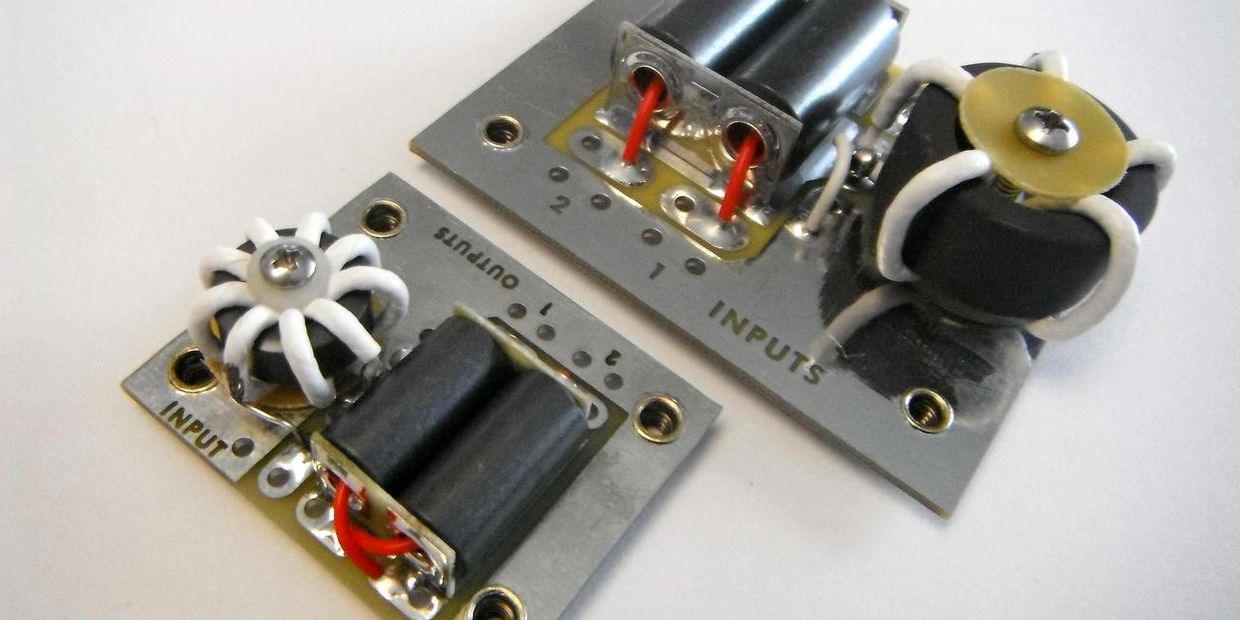

PC board size: Splitter (1 5/8" x 2") Combiner (2 7/16" x 3 1/8")
