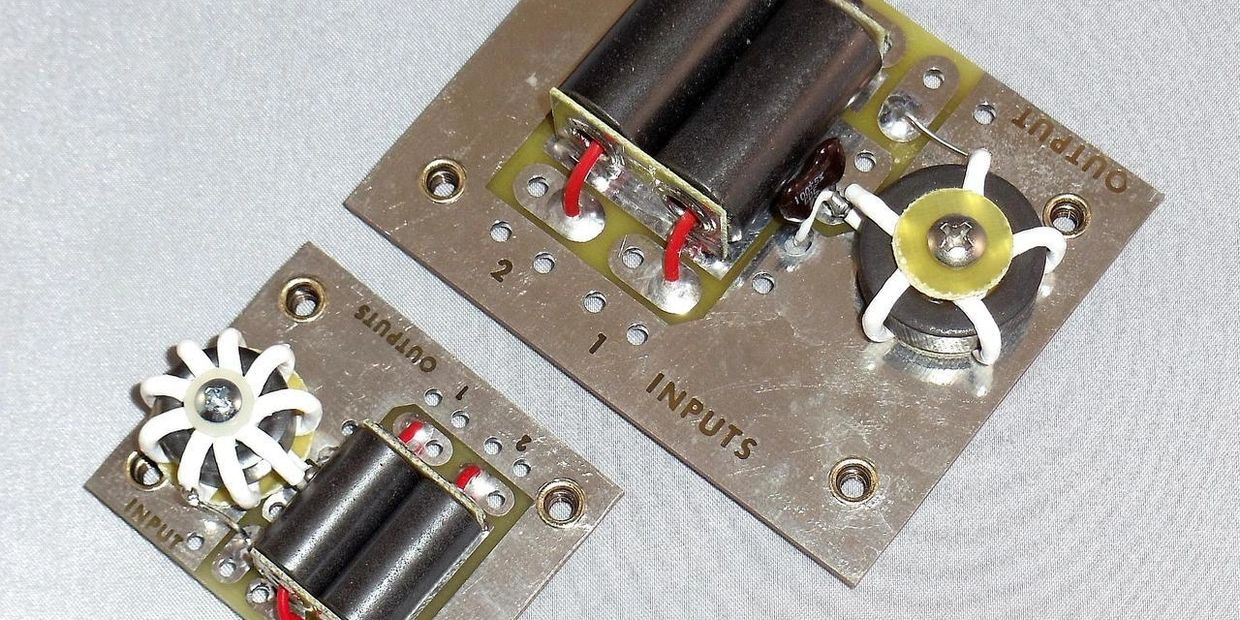

2 Port 600 Watt Splitter/Combiner


2-PORT 600 WATT SPLITTER/COMBINER

50 ohm impedance in all ports

600 Watt SSB power handling capacity

30 dB minimum isolation between splitter output ports

30 dB minimum isolation between combiner input ports

VSWR is less than 2:1 for 2 to 30 MHz.

PC board size: Splitter (1 5/8" x 2") Combiner (2 7/16" x 3 1/8")
