Low Impedance Coaxial Cable

TC-24

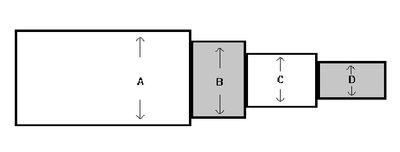

Diameter A    0.095 inches

Diameter B    0.066 inches

Diameter C    0.043 inches

Diameter D    0.021 inches

Impedance     26.79 Ohms

TC-22



Diameter A    0.102  inches

Diameter B    0.071  inches

Diameter C    0.049 inches

Diameter D    0.029 inches

Impedance     21.69 Ohms

TC-20



Diameter A    0.110 inches

Diameter B    0.079 inches

Diameter C    0.058 inches

Diameter D    0.037 inches

Impedance     18.59 Ohms

TC-18



Diameter A    0.120 inches

Diameter B    0.088 inches

Diameter C    0.070 inches

Diameter D    0.047 inches

Impedance     17.06 Ohms

TC-12



Diameter A    0.164 inches

Diameter B    0.133 inches

Diameter C    0.110 inches

Diameter D    0.084 inches

Impedance     10.77 Ohms
