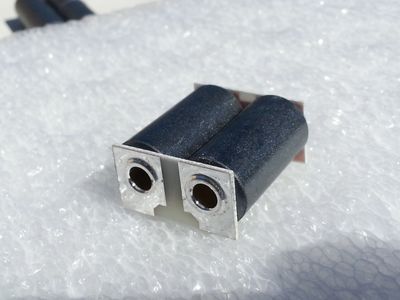

2-30 Mhz Type "H" Transformers

These transformers are intended for input, output and interstage impedance matching applications, primarily in solid-state, push-pull amplifiers in the 2-30 MHz frequency range. Operation in single ended designs is also possible.



  • Four standard sizes in stock
  • Power levels up to 250 W
  • Impedance ratios from 1:1 to 25:1 available
  • TFE insulated wire standard on pre-wired versions for reliability
  • Specials available to customer specifications
  • Specifications and drawings shown below

RF400

Part#                Material        Permeability ui

RF400                     43                     850

RF400 T77           77                     2000

Click for Dimensions

RF600



Part#                Material        Permeability ui

RF600                     43                     850


Click for Dimensions

RF800



Part#                Material        Permeability ui

RF800                     43                     850

RF800 T67           67                      40

Click for Dimensions

RF1000



Part#                Material        Permeability ui

RF1000                    43                     850

RF1000 T61          61                     125

RF1000 T67          67                      40

RF1000 T77          77                     2000

Click for Dimensions
